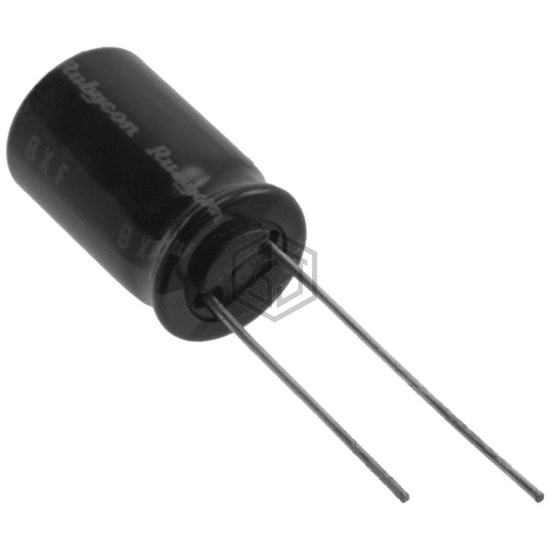

CAP ALUM 47UF 20% 200V RADIAL
200BXF47MT810X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 1,243
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 320 mA @ 120 Hz |
| Ripple Current @ High Frequency | 800 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
200BXF47MT810X20 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKE00FE247S00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 200V RADIAL | 90% | View |
| UCY2E470MPD9 | Nichicon | CAP ALUM 47UF 20% 250V RADIAL | 88% | View |
| ELXG251VNN470MP25U | United Chemi-Con | CAP ALUM 47UF 20% 250V SNAP | 86% | View |
| EKXJ351ELL470MU20S | United Chemi-Con | CAP ALUM 47UF 20% 350V RADIAL | 70% | View |
| B43858B5476M000 | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 450V RADIAL | 65% | View |
| RJ4-450V470MJ8# | Elna America | CAP 47UF 450V RADIAL | 60% | View |
Submit your RFQ for 200BXF47MT810X20 and get a quote within 24 hours.
