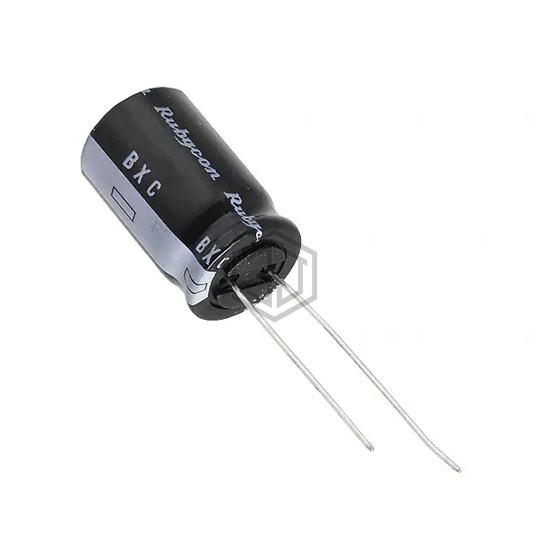

CAP ALUM 47UF 20% 200V RADIAL
200BXC47MEFCG412.5X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 3,728
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 392 mA @ 120 Hz |
| Ripple Current @ High Frequency | 980 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43858C2476M | EPCOS - TDK Electronics | CAP ALUM 47UF 20% 200V RADIAL | 93% | View |
| MALREKE00FG247N00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 250V RADIAL | 87% | View |
| UPB2E470MHD | Nichicon | CAP ALUM 47UF 20% 250V RADIAL | 82% | View |
| EKWA421ELL470MJ40S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 71% | View |
| MAL215266479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 400V RADIAL | 55% | View |
| ED1J470MP51013E | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 52% | View |
Submit your RFQ for 200BXC47MEFCG412.5X20 and get a quote within 24 hours.
