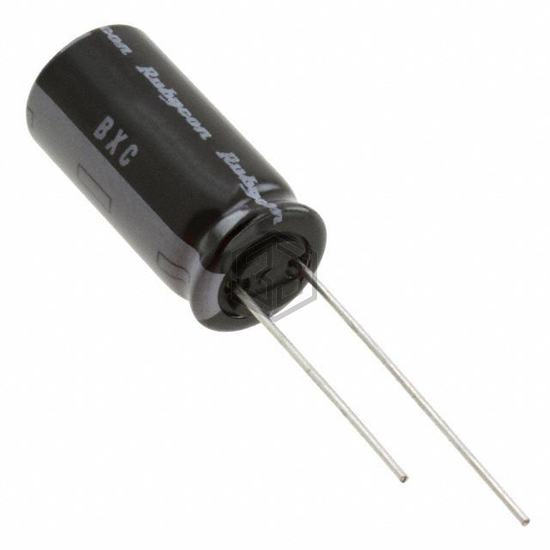

CAP ALUM 22UF 20% 200V RADIAL
200BXC22MEFCT810X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 7,806
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 250BXC22MEFCT810X20 | Rubycon | CAP ALUM 22UF 20% 250V RADIAL | 93% | View |
| EEU-EB2G220S | Panasonic Electronic Components | CAP ALUM 22UF 20% 400V RADIAL | 74% | View |
| UBT2E220MHD8 | Nichicon | CAP ALUM 22UF 20% 250V RADIAL | 64% | View |
| MAL215039229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 100V RADIAL | 62% | View |
| 400BXC22MEFC12.5X20 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL | 56% | View |
| 25ML22MEFC5X7 | Rubycon | CAP ALUM 22UF 20% 25V RADIAL | 56% | View |
