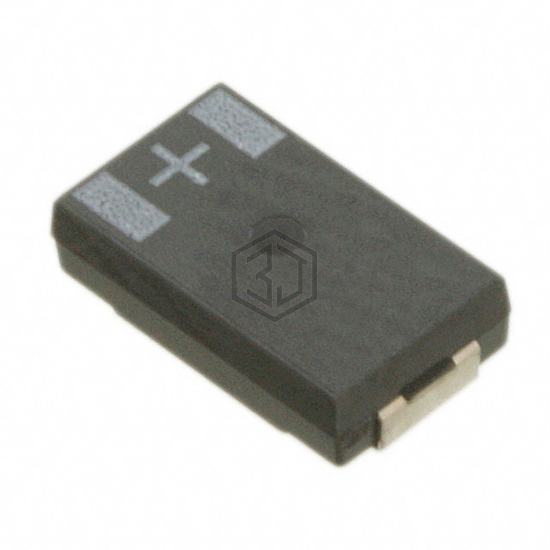

CAP ALUM POLY 150UF 20% 2.5V SMD
2.5SXE150M is a Aluminum - Polymer Capacitors manufactured by Rubycon. CAP ALUM POLY 150UF 20% 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case 2917 (7343 Metric).
In Stock: 5,582
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 9mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.075" (1.90mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
2.5SXE150M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEF-SX0E151R | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 2.5V SMD | 100% | View |
| 2.5SXB150M | Rubycon | CAP ALUM POLY 150UF 20% 2.5V SMD | 100% | View |
| A700V157M002ATE018 | KEMET | CAP ALUM POLY 150UF 20% 2V SMD | 86% | View |
| A700V157M002ATE015 | KEMET | CAP ALUM POLY 150UF 20% 2V SMD | 80% | View |
| A700D157M006ATE010 | KEMET | CAP ALUM POLY 150UF 20% 6.3V SMD | 55% | View |
| 875015119004 | Würth Elektronik | CAP ALUM POLY 150UF 20% 6.3V SMD | 54% | View |
Submit your RFQ for 2.5SXE150M and get a quote within 24 hours.
