CAP ALUM 270UF 20% 180V SNAP

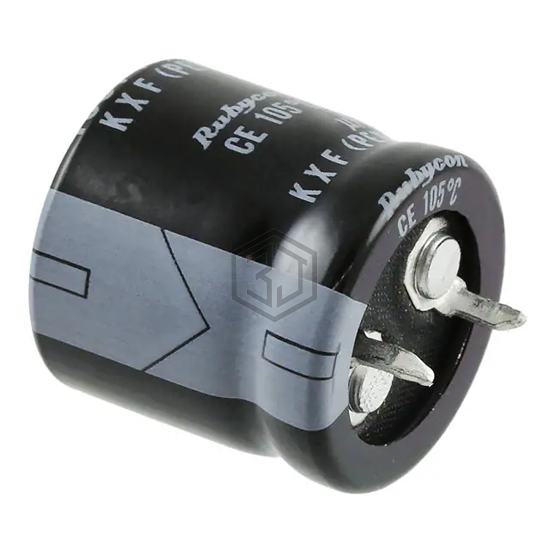

180KXF270MEFCSN22X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 270UF 20% 180V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 180 V, package / case Radial, Can - Snap-In.
In Stock: 2,527
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 180 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.425 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX271M200J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 200V SNAP | 92% | View |
| 200TXW270MEFR12.5X50 | Rubycon | CAP ALUM 270UF 20% 200V RAD TH | 85% | View |
| EEU-FS2A271S | Panasonic Electronic Components | CAP ALUM 270UF 20% 100V RADIAL | 80% | View |
| 381LX271M315J452 | Cornell Dubilier Electronics (CDE) | CAP ALUM 270UF 20% 315V SNAP | 78% | View |
| 400MXC270MEFC35X30 | Rubycon | CAP ALUM 270UF 20% 400V SNAP | 69% | View |
| 861021485025 | Würth Elektronik | CAP ALUM 270UF 20% 450V SNAP | 60% | View |
Submit your RFQ for 180KXF270MEFCSN22X20 and get a quote within 24 hours.
