CAP ALUM 5600UF 20% 16V RADIAL

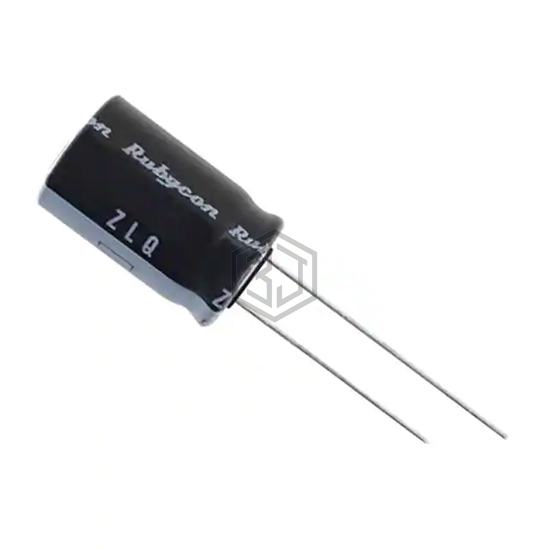

16ZLQ5600MEFC16X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 5600UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,191
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.716 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.88 A @ 100 kHz |
| Impedance | 11 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZE6R3ELL562MK35S | United Chemi-Con | CAP ALUM 5600UF 20% 6.3V RADIAL | 74% | View |
| 381LQ562M035J012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 35V SNAP | 68% | View |
| SLP562M100H9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 100V SNAP | 63% | View |
| LGU1V562MELZ | Nichicon | CAP ALUM 5600UF 20% 35V SNAP | 62% | View |
| 35MXG5600MEFCSN20X40 | Rubycon | CAP ALUM 5600UF 20% 35V SNAP | 62% | View |
| ELXZ6R3ELL562ML20S | United Chemi-Con | CAP ALUM 5600UF 20% 6.3V RADIAL | 51% | View |
Submit your RFQ for 16ZLQ5600MEFC16X25 and get a quote within 24 hours.
