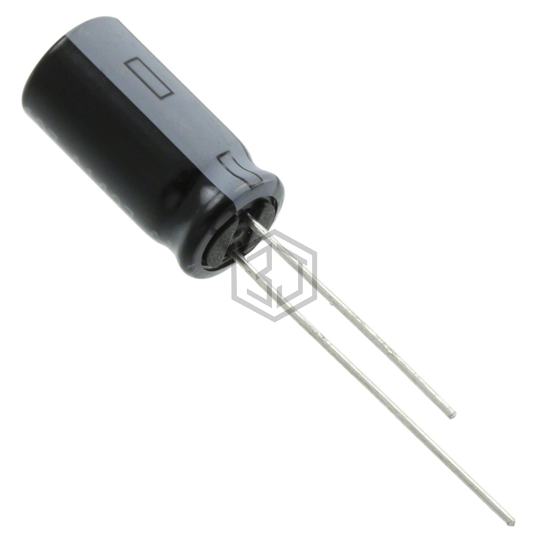

CAP ALUM 680UF 20% 16V RADIAL
16ZLH680MEFCT78X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,788
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 687.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.25 A @ 100 kHz |
| Impedance | 45 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C5687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 25V RADIAL | 79% | View |
| UPM1A681MPD6AA | Nichicon | CAP ALUM 10V POLAR | 70% | View |
| MAL215051681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 50V RADIAL | 68% | View |
| MAL214651681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 50V RADIAL | 67% | View |
| EEU-FC1A681L | Panasonic Electronic Components | CAP ALUM 680UF 20% 10V RADIAL | 64% | View |
| MAL214850681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 35V RADIAL | 54% | View |
Submit your RFQ for 16ZLH680MEFCT78X16 and get a quote within 24 hours.
