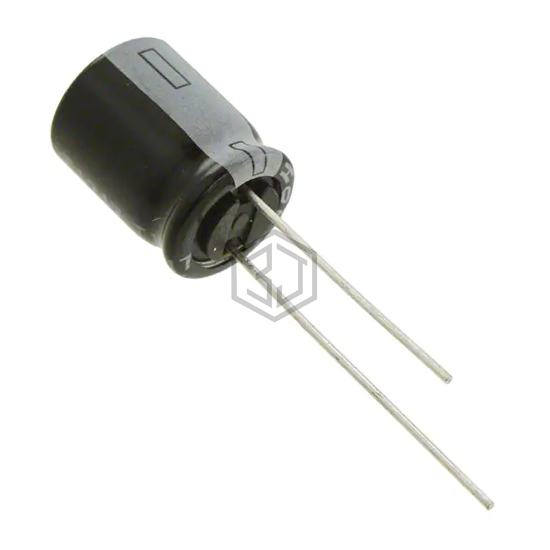

CAP ALUM 680UF 20% 16V RADIAL
16ZLH680MCE10X12.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 680UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,278
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 731.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.33 A @ 100 kHz |
| Impedance | 39 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16ZLH680MEFC10X12.5 | Rubycon | CAP ALUM 680UF 20% 16V RADIAL | 100% | View |
| RF1C681MP30815EF10 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 89% | View |
| 25ZLS680MEFCT810X16 | Rubycon | CAP ALUM 680UF 20% 25V RADIAL | 76% | View |
| 100MXG680MEFCSN20X25 | Rubycon | CAP ALUM 680UF 20% 100V SNAP | 68% | View |
| MAL225058681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 67% | View |
| EGXF350ELL681MJ20S | United Chemi-Con | CAP ALUM 680UF 20% 35V RADIAL TH | 64% | View |
Submit your RFQ for 16ZLH680MCE10X12.5 and get a quote within 24 hours.
