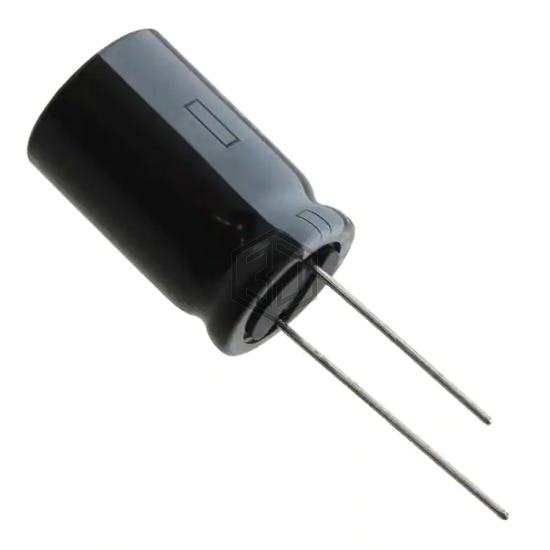

CAP ALUM 4700UF 20% 16V RADIAL
16ZLH4700MEFC16X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 4700UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,369
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.541 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.63 A @ 100 kHz |
| Impedance | 13 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FR1C472 | Panasonic Electronic Components | CAP ALUM 4700UF 20% 16V RADIAL | 95% | View |
| 10ZLJ4700MG412.5X30 | Rubycon | CAP ALUM 4700UF 20% 10V RADIAL | 83% | View |
| EGPA250ELL472MM30S | United Chemi-Con | CAP ALUM 4700UF 20% 25V RADIAL | 82% | View |
| 861140786018 | Würth Elektronik | CAP ALUM 4700UF 20% 63V SNAP | 76% | View |
| EKMH630VSN472MA30S | United Chemi-Con | CAP ALUM 4700UF 20% 63V SNAP | 75% | View |
| EKMH630VSN472MQ50U | United Chemi-Con | CAP ALUM 4700UF 20% 63V SNAP | 75% | View |
Submit your RFQ for 16ZLH4700MEFC16X25 and get a quote within 24 hours.
