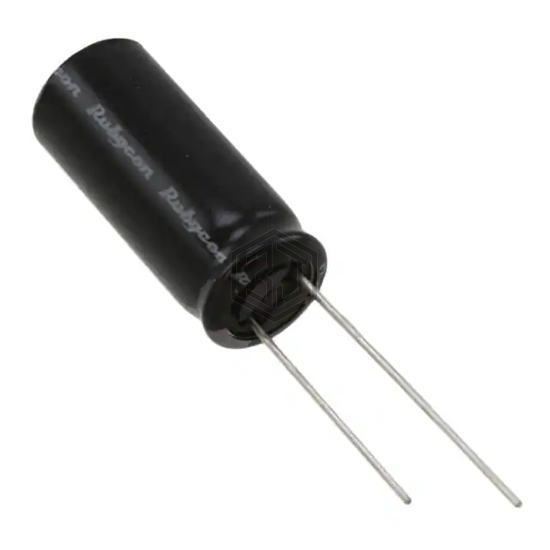

CAP ALUM 1200UF 20% 16V RADIAL
16YXH1200MEFC10X23 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1200UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,110
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 990 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.65 A @ 100 kHz |
| Impedance | 42 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXW122M1CBK-1025S | Surge | CAP ALUM 16V POLAR | 94% | View |
| EEU-FS1A122L | Panasonic Electronic Components | CAP ALUM 1200UF 20% 10V RADIAL | 81% | View |
| EEU-FR0J122LB | Panasonic Electronic Components | CAP ALUM 1200UF 20% 6.3V RADIAL | 76% | View |
| MALREKC00DG412C00F | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1.2MF 20% 10V RADIAL | 74% | View |
| SLP122M080A3P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 80V SNAP | 66% | View |
| 128KXM6R3MLQ | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1200UF 20% 6.3V RADIAL | 62% | View |
Submit your RFQ for 16YXH1200MEFC10X23 and get a quote within 24 hours.
