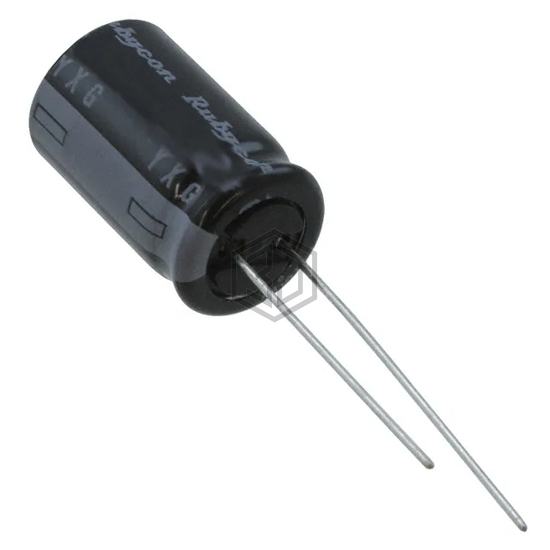

CAP ALUM 1500UF 20% 16V RADIAL
16YXG1500MEFCG412.5X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1500UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,510
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.14 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz |
| Impedance | 35 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16ZLH1500MEFC12.5X16 | Rubycon | CAP ALUM 1500UF 20% 16V RADIAL | 100% | View |
| MAL213635152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 16V RADIAL | 98% | View |
| 25YXH1500MEFCG412.5X25 | Rubycon | CAP ALUM 1500UF 20% 25V RADIAL | 78% | View |
| MAL224630152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V RADIAL | 77% | View |
| MAL213668152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 63V RADIAL | 75% | View |
| LGY2A152MELA40 | Nichicon | CAP ALUM 1500UF 20% 100V SNAP | 66% | View |
