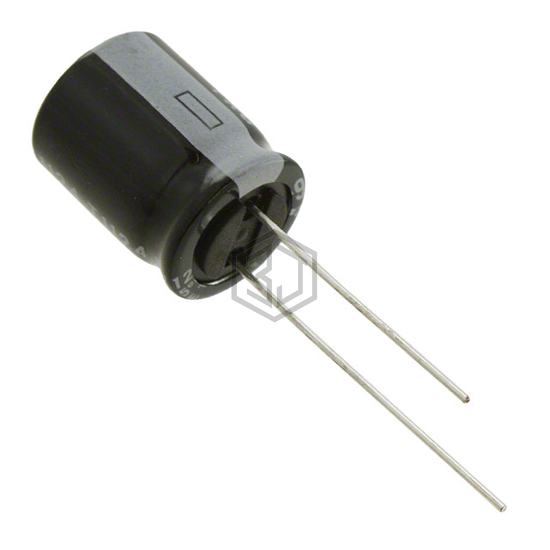

CAP ALUM 1000UF 20% 16V RADIAL
16YXG1000MEFC12.5X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 1,883
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 870 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.45 A @ 100 kHz |
| Impedance | 49 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK102M1CBK-1025S | SURGE | CAP ALUM 1000UF 20% 16V RADIAL | 93% | View |
| EEU-TA1C102B | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V RADIAL | 92% | View |
| EEU-FR1C102LJ | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V RADIAL | 86% | View |
| 25ZT1000M12.5X25 | Rubycon | CAP ALUM 1000UF 20% 25V RADIAL | 72% | View |
| EEU-FM1C102 | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V RADIAL | 67% | View |
| MAL205851102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V SNAP | 56% | View |
