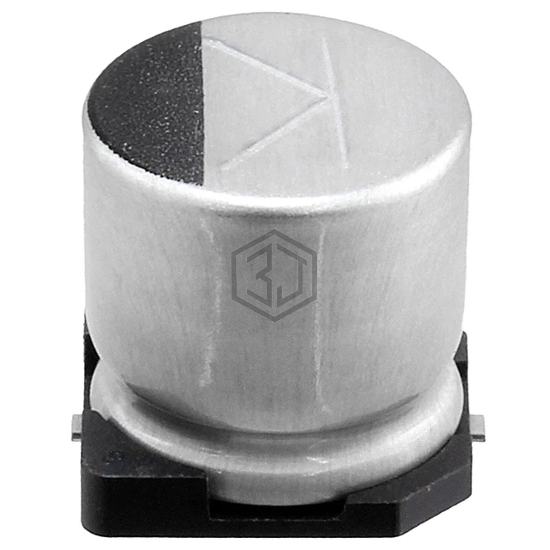

CAP ALUM 680UF 20% 16V SMD
16TLV680M10X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 680UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 1,847
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | 80 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AFK687M16G24T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 680UF 20% 16V SMD | 95% | View |
| MAL215097502E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 16V SMD | 92% | View |
| UWD1C681MCL1GS | Nichicon | CAP ALUM 680UF 20% 16V SMD | 85% | View |
| MAL215099613E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V SMD | 83% | View |
| 10JZV680M8X10.5 | Rubycon | CAP ALUM 680UF 20% 10V SMD | 65% | View |
| MAL215099819E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V SMD | 62% | View |
Submit your RFQ for 16TLV680M10X10.5 and get a quote within 24 hours.
