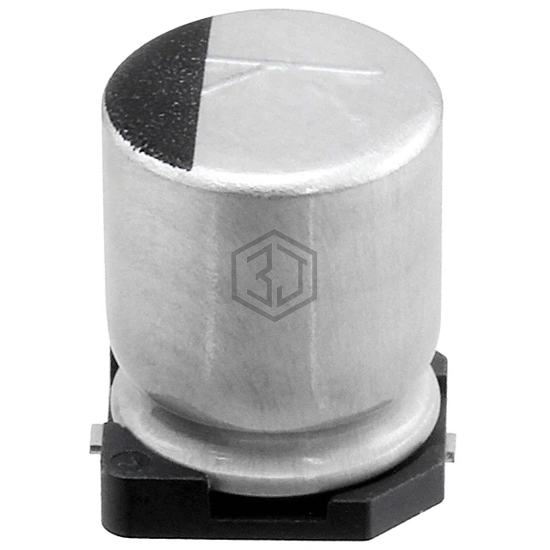

CAP ALUM 470UF 20% 16V SMD
16TLV470M8X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 470UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 2,305
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 360 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUX1A471MNL1GS | Nichicon | CAP ALUM 470UF 20% 10V SMD | 79% | View |
| 865060153008 | Würth Elektronik | CAP ALUM 470UF 20% 6.3V SMD | 75% | View |
| CEE1E471MCB10A5F2 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 69% | View |
| EEE-FT1E471AV | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V SMD | 68% | View |
| EEE-FK1E471AV | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V SMD | 68% | View |
| EEE-FP1E471AP | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V SMD | 52% | View |
Submit your RFQ for 16TLV470M8X10.5 and get a quote within 24 hours.
