CAP ALUM 3300UF 20% 16V SMD

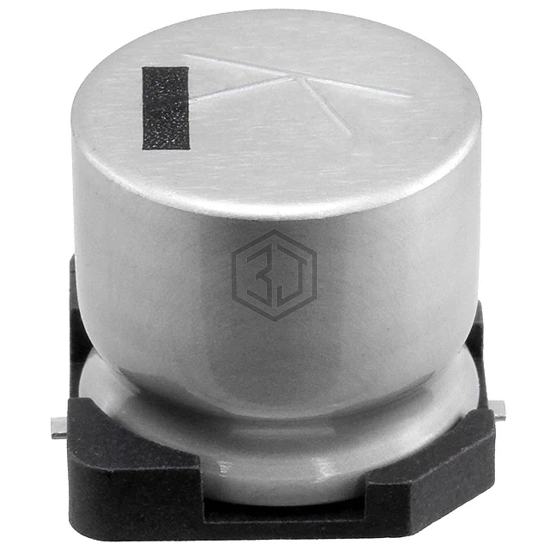

16TLV3300M18X16.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 3300UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 1,897
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.236 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.06 A @ 100 kHz |
| Impedance | 44 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVY16VE332MM17TR | United Chemi-Con | CAP ALUM 3300UF 20% 16V SMD | 85% | View |
| EMVY160ARA332MMH0S | Chemi-Con | CAP ALUM 16V POLAR | 85% | View |
| EMVY250ARA332MMN0S | Chemi-Con | CAP ALUM 25V POLAR | 82% | View |
| VZH332M1ETR-1621S | Surge | CAP ALUM 25V POLAR | 80% | View |
| VZH332M1ETR-1816S | Surge | CAP ALUM 25V POLAR | 77% | View |
| 6.3TLV3300M12.5X16 | Rubycon | CAP ALUM 3300UF 20% 6.3V SMD | 63% | View |
Submit your RFQ for 16TLV3300M18X16.5 and get a quote within 24 hours.
