CAP ALUM 820UF 20% 16V SMD

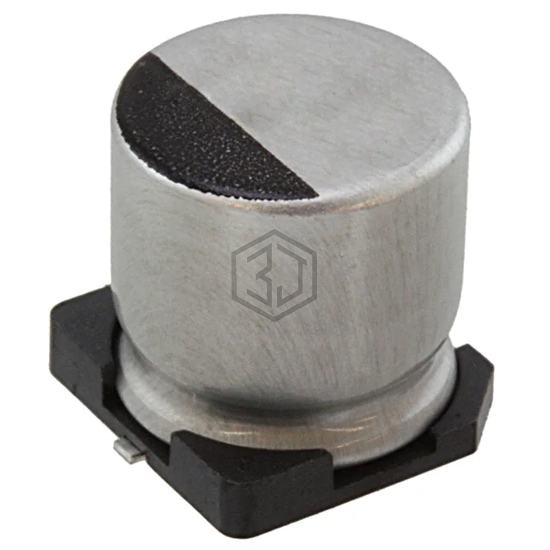

16TKV820M10X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 820UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,333
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FPC821UAL | Panasonic Electronic Components | CAP ALUM 820UF 20% 16V SMD | 96% | View |
| EEE-FN1E821UV | Panasonic Electronic Components | CAP ALUM 820UF 20% 25V SMD | 83% | View |
| EEE-FN1E821UP | Panasonic Electronic Components | CAP ALUM 820UF 20% 25V SMD | 83% | View |
| EEE-FN1A821UL | Panasonic Electronic Components | CAP ALUM 820UF 20% 10V SMD | 73% | View |
| EEE-FT1E821AL | Panasonic Electronic Components | CAP ALUM 820UF 20% 25V SMD | 67% | View |
| EEE-FT1E821AV | Panasonic Electronic Components | CAP ALUM 820UF 20% 25V SMD | 67% | View |
Submit your RFQ for 16TKV820M10X10.5 and get a quote within 24 hours.
