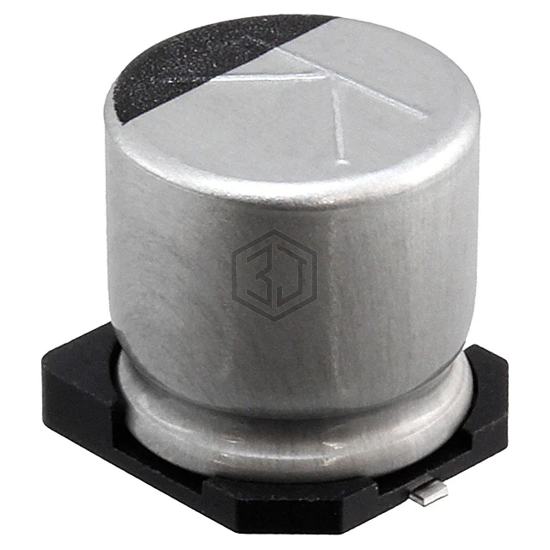

CAP ALUM 330UF 20% 16V SMD
16THV330M10X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 330UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 3,212
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 200mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMHJ160ADA331MJA0G | United Chemi-Con | CAP ALUM 330UF 20% 16V SMD | 96% | View |
| EEE-TP1A331AP | Panasonic Electronic Components | CAP ALUM 330UF 20% 10V SMD | 84% | View |
| EMHJ250ADA331MJA0G | United Chemi-Con | CAP ALUM 330UF 20% 25V SMD | 82% | View |
| EEV-TG1C331Q | Panasonic Electronic Components | CAP ALUM 330UF 20% 16V SMD | 76% | View |
| 25TXV330M10X10.5 | Rubycon | CAP ALUM 330UF 20% 25V SMD | 62% | View |
| EEE-TK1E331UP | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V SMD | 59% | View |
