CAP ALUM 1500UF 20% 16V SMD

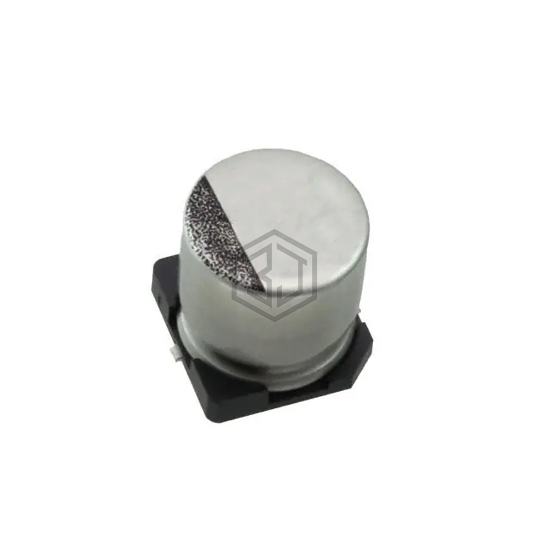

16TGV1500M16X16.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1500UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 8,938
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 66mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 720 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214099516E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 16V SMD | 95% | View |
| UCX1E152MNS1ZD | Nichicon | CAP ALUM 1500UF 20% 25V SMD | 82% | View |
| EMHS250ARA132MKG5S | United Chemi-Con | CAP ALUM 1300UF 20% 25V SMD | 79% | View |
| EMHS250GRA132MKG5S | United Chemi-Con | CAP ALUM 1300UF 20% 25V SMD | 79% | View |
| VUA152M1ATR-1316S | Surge | CAP ALUM 10V POLAR | 70% | View |
| EEV-TG1A152UQ | Panasonic Electronic Components | CAP ALUM 1500UF 20% 10V SMD | 68% | View |
Submit your RFQ for 16TGV1500M16X16.5 and get a quote within 24 hours.
