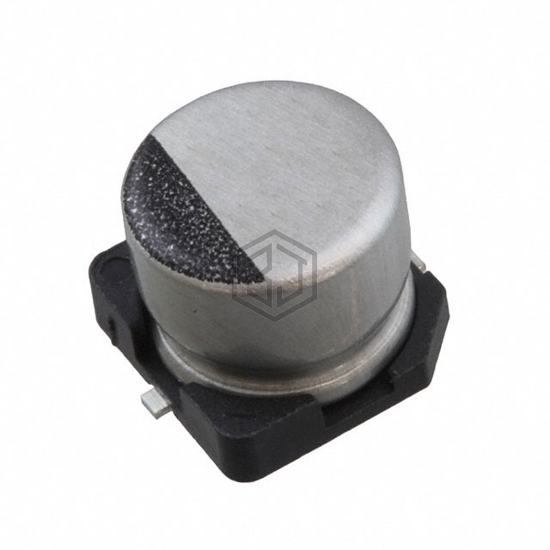

CAP ALUM 33UF 20% 16V SMD
16SZV33M6.3X5.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 33UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 7,558
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 77 mA @ 120 Hz |
| Ripple Current @ High Frequency | 140 mA @ 100 kHz |
| Impedance | 1 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUD1A330MCR1GS | Nichicon | CAP ALUM 33UF 20% 10V SMD | 82% | View |
| UWZ1H330MCL1GS | Nichicon | CAP ALUM 33UF 20% 50V SMD | 62% | View |
| EMZA630ADA330MHA0G | United Chemi-Con | CAP ALUM 33UF 20% 63V SMD | 60% | View |
| EEE-FK2A330P | Panasonic Electronic Components | CAP ALUM 33UF 20% 100V SMD | 56% | View |
| EEE-FK1H330V | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V SMD | 56% | View |
| EEV336M025A9GAA | KEMET | CAP ALUM 33UF 20% 25V SMD | 53% | View |
