CAP ALUM 470UF 20% 16V RADIAL

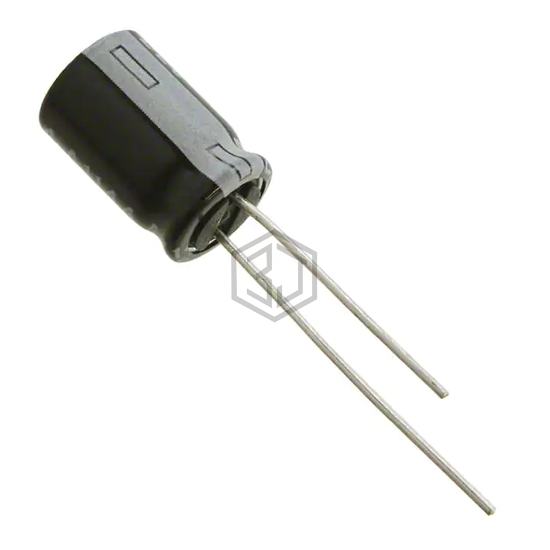

16RX30470MTA8X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 470UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,371
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 130°C |
| Operating Temperature | -40°C ~ 130°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16RX30470MT810X12.5 | Rubycon | CAP ALUM 470UF 20% 16V RADIAL | 100% | View |
| UBX1E471MHL1TN | Nichicon | CAP ALUM 470UF 20% 25V RADIAL | 71% | View |
| EEU-TP1E471LB | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V RADIAL | 71% | View |
| UBW1H471MHD1TO | Nichicon | CAP ALUM 470UF 20% 50V RADIAL | 56% | View |
| UBW1H471MHD | Nichicon | CAP ALUM 470UF 20% 50V RADIAL | 56% | View |
| UBW1V471MPD | Nichicon | CAP ALUM 470UF 20% 35V RADIAL | 56% | View |
Submit your RFQ for 16RX30470MTA8X16 and get a quote within 24 hours.
