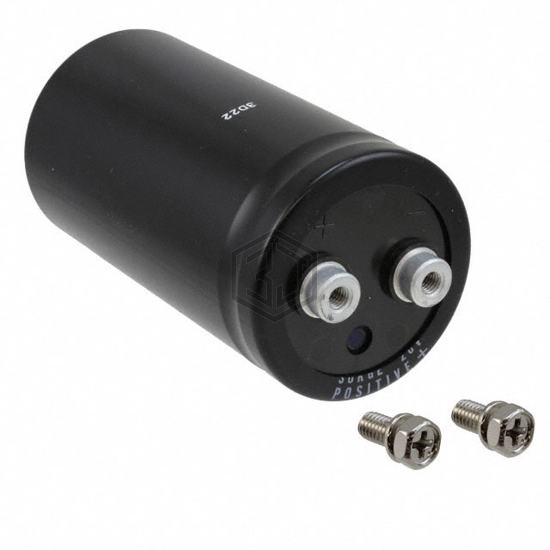

CAP ALUM 100000UF 20% 16V SCREW
16LSW100000MNB51X98 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100000UF 20% 16V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,574
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 12.204 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.858" (21.80mm) |
| Size / Dimension | 2.008" Dia (51.00mm) |
| Height - Seated (Max) | 4.016" (102.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1E104MSE | Nichicon | CAP ALUM 100000UF 20% 25V SCREW | 84% | View |
| LNT1A104MSEN | Nichicon | CAP ALUM 100000UF 20% 10V SCREW | 78% | View |
| B41580A5100M000 | EPCOS - TDK Electronics | CAP ALUM 100000UF 20% 25V SCREW | 72% | View |
| LNT1J104MSE | Nichicon | CAP ALUM 100000UF 20% 63V SCREW | 56% | View |
| B41580A7100M000 | EPCOS - TDK Electronics | CAP ALUM 100000UF 20% 40V SCREW | 56% | View |
| B41560A7100M000 | EPCOS - TDK Electronics | CAP ALUM 100000UF 20% 40V SCREW | 56% | View |
Submit your RFQ for 16LSW100000MNB51X98 and get a quote within 24 hours.
