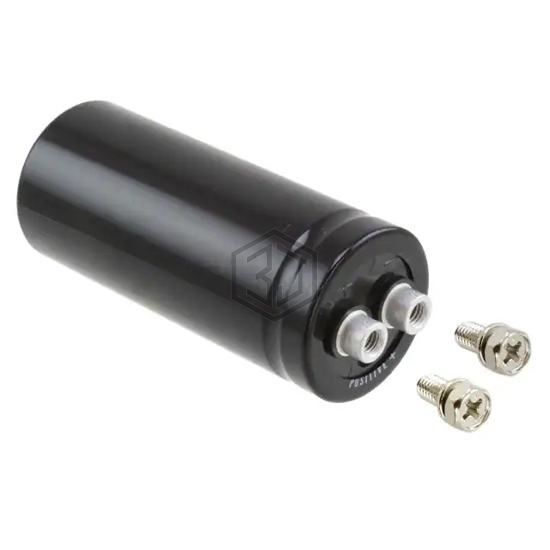

CAP ALUM 47000UF 20% 16V SCREW
16LSQ47000MNB36X83 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47000UF 20% 16V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,400
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.884 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 3.386" (86.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNR1C473MSE | Nichicon | CAP ALUM 47000UF 20% 16V SCREW | 95% | View |
| E32D160HPN473MA67U | United Chemi-Con | CAP ALUM 47000UF 20% 16V SCREW | 85% | View |
| LNR1A473MSE | Nichicon | CAP ALUM 47000UF 20% 10V SCREW | 78% | View |
| LNR1H473MSE | Nichicon | CAP ALUM 47000UF 20% 50V SCREW | 70% | View |
| 35LSW47000M51X98 | Rubycon | CAP ALUM 47000UF 20% 35V SCREW | 64% | View |
| LNT1H473MSEN | Nichicon | CAP ALUM 47000UF 20% 50V SCREW | 56% | View |
Submit your RFQ for 16LSQ47000MNB36X83 and get a quote within 24 hours.
