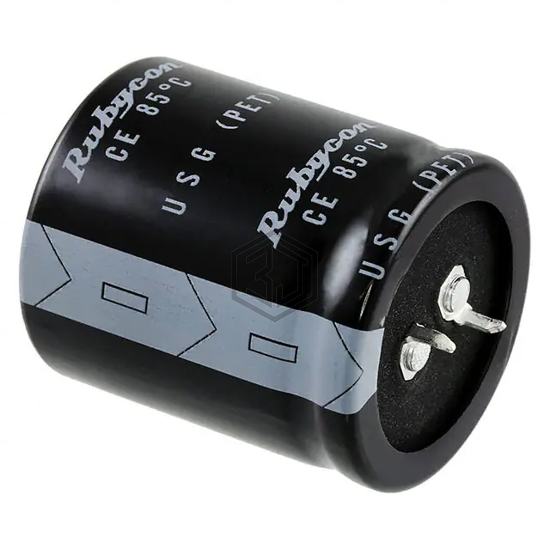

CAP ALUM 2200UF 20% 160V SNAP
160USG2200MEFCSN30X45 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2200UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 4,415
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.17 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 380LQ222M180A042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 180V SNAP | 95% | View |
| LAR2D222MELC45 | Nichicon | CAP ALUM 2200UF 20% 200V SNAP | 78% | View |
| B43305E2228M80 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 250V SNAP | 76% | View |
| B43640E2228M002 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 250V SNAP | 71% | View |
| B41607B7228M2 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 40V SNAP | 69% | View |
| LKS2A222MESC | Nichicon | CAP ALUM 2200UF 20% 100V SNAP | 65% | View |
