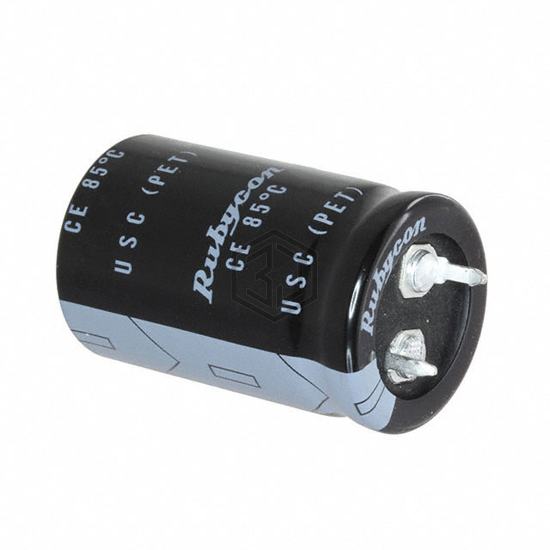

CAP ALUM 2200UF 20% 160V SNAP
160USC2200MEFCSN35X40 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2200UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 5,047
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.96 A @ 120 Hz |
| Ripple Current @ High Frequency | 7.44 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43540A2228M7 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 200V SNAP | 84% | View |
| LKG2A222MESCBK | Nichicon | CAP ALUM 2200UF 20% 100V SNAP | 72% | View |
| MAL205049222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 100V RADIAL | 70% | View |
| 381LQ222M180K052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 180V SNAP | 69% | View |
| 16ZLH2200MEFCT810X25 | Rubycon | CAP ALUM 2200UF 20% 16V RADIAL | 56% | View |
| 50YK2200M16X31.5 | Rubycon | CAP ALUM 2200UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for 160USC2200MEFCSN35X40 and get a quote within 24 hours.
