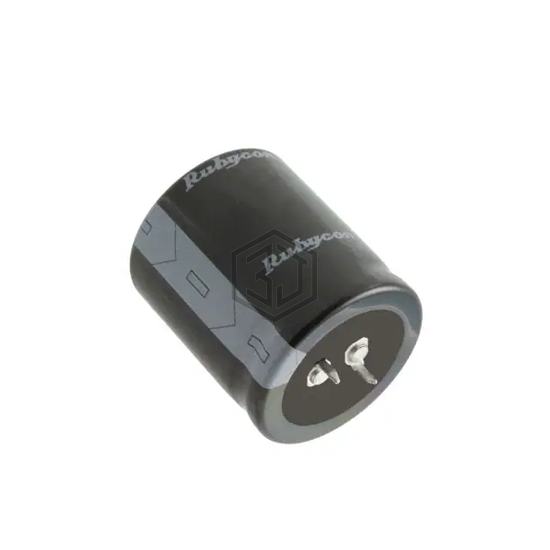

CAP ALUM 1500UF 20% 160V SNAP
160MXG1500MEFCSN30X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1500UF 20% 160V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can - Snap-In.
In Stock: 1,510
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.75 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LQ152M160A022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 160V SNAP | 98% | View |
| LSG152M2D---3050S | Surge | CAP ALUM 1.5MF 20% 200V SNAP IN | 88% | View |
| B41252B9158M | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 100V SNAP | 78% | View |
| 860080578024 | Würth Elektronik | CAP ALUM 1500UF 20% 35V RADIAL | 68% | View |
| 757D158M025DT3D | Vishay Sprague | CAP ALUM 1500UF 20% 25V RADIAL | 68% | View |
| MAL212025152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 16V AXIAL | 60% | View |
Submit your RFQ for 160MXG1500MEFCSN30X35 and get a quote within 24 hours.
