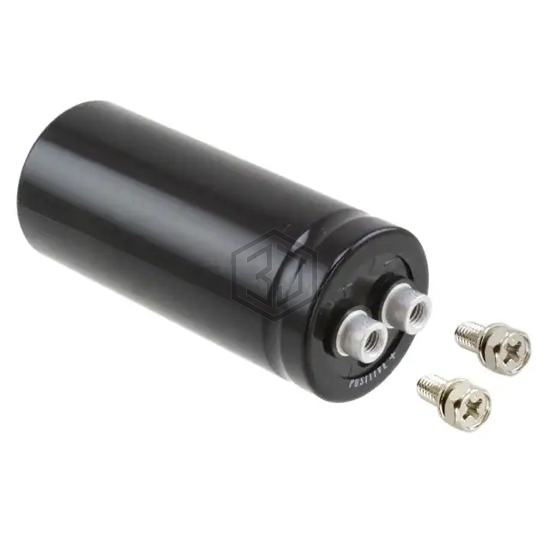

CAP ALUM 1500UF 20% 160V SCREW
160LSQ1500MEFC36X63 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1500UF 20% 160V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,336
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.776 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.417" Dia (36.00mm) |
| Height - Seated (Max) | 3.386" (86.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNR2E152MSEN | Nichicon | CAP ALUM 1500UF 20% 250V SCREW | 84% | View |
| MAL210253152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 250V SCREW | 65% | View |
| MAL210463152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 250V SCREW | 62% | View |
| MAL210423152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 250V SCREW | 62% | View |
| DCMC152T400EC2A | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 400V SCREW | 56% | View |
| E36D351LPN152TC92U | United Chemi-Con | CAP ALUM 1500UF 350V SCREW | 56% | View |
Submit your RFQ for 160LSQ1500MEFC36X63 and get a quote within 24 hours.
