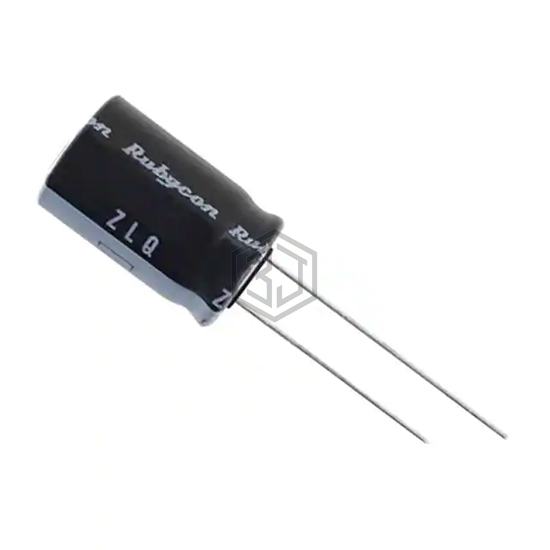

CAP ALUM 8200UF 20% 10V RADIAL
10ZLQ8200MEFC12.5X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 8200UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,998
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.66 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.8 A @ 100 kHz |
| Impedance | 10 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16YXG8200MEFC18X35.5 | Rubycon | CAP ALUM 8200UF 20% 16V RADIAL | 79% | View |
| EKMH350VNN822MR30S | United Chemi-Con | CAP ALUM 8200UF 20% 35V SNAP | 72% | View |
| 50MXG8200MEFCSN30X35 | Rubycon | CAP ALUM 8200UF 20% 50V SNAP | 70% | View |
| 860020380028 | Würth Elektronik | CAP ALUM 8200UF 20% 16V RADIAL | 70% | View |
| 63MXC8200MEFCSN30X50 | Rubycon | CAP ALUM 8200UF 20% 63V SNAP | 64% | View |
| B41252B6828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 50V SNAP | 59% | View |
