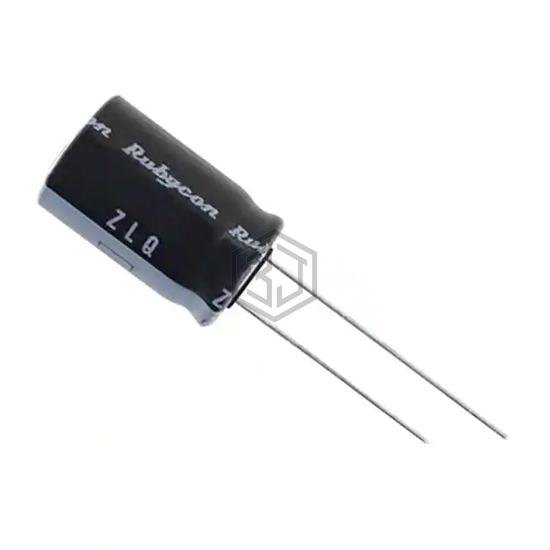

CAP ALUM 6800UF 20% 10V RADIAL
10ZLQ6800MEFC12.5X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 6800UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 431
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.576 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.68 A @ 100 kHz |
| Impedance | 12 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX682M063K052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 63V SNAP | 68% | View |
| B41895A5688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 25V RADIAL | 68% | View |
| LGU1J682MELC | Nichicon | CAP ALUM 6800UF 20% 63V SNAP | 67% | View |
| 63MXG6800MEFCSN30X35 | Rubycon | CAP ALUM 6800UF 20% 63V SNAP | 67% | View |
| MAL212045682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 16V T/H | 64% | View |
| 6.3YXJ6800M12.5X25 | Rubycon | CAP ALUM 6800UF 20% 6.3V RADIAL | 58% | View |
