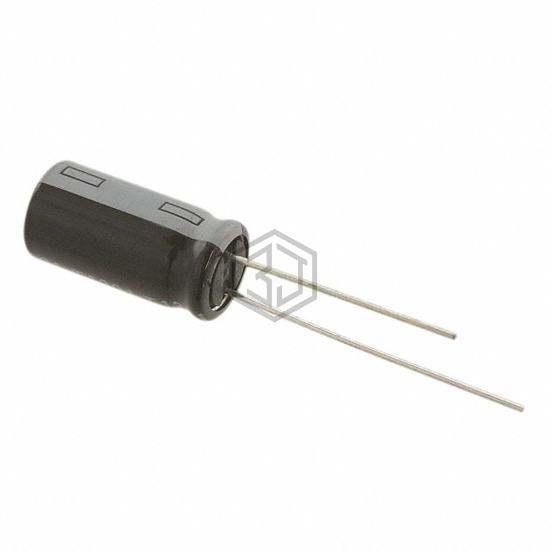

CAP ALUM 1000UF 20% 10V RADIAL
10ZLH1000M8X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 2,378
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 750 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.25 A @ 100 kHz |
| Impedance | 45 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
10ZLH1000M8X16 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1A102MPD1TD | Nichicon | CAP ALUM 1000UF 20% 10V RADIAL | 95% | View |
| RZW102M1ABK-0820S | Surge | CAP ALUM 10V POLAR | 88% | View |
| B41890A4108M | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 16V RADIAL | 71% | View |
| EEU-FR1C102L | Panasonic Electronic Components | CAP ALUM 1000UF 20% 16V RADIAL | 69% | View |
| MAL215061102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 56% | View |
| 601D108G030FT2 | Vishay Sprague | CAP ALUM 1000UF 30V AXIAL | 56% | View |
Submit your RFQ for 10ZLH1000M8X16 and get a quote within 24 hours.
