CAP ALUM 1500UF 20% 10V RADIAL

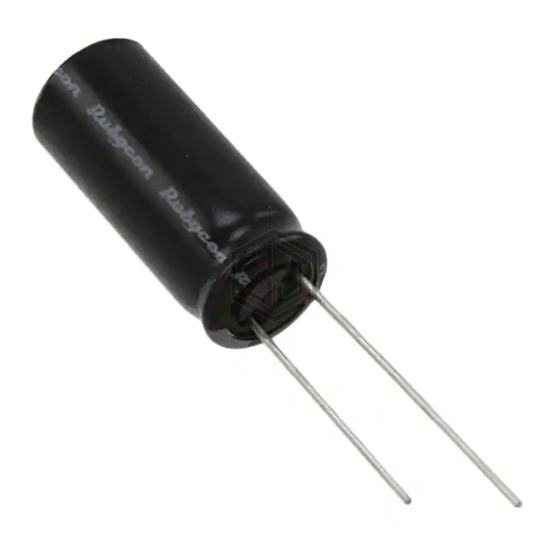

10ZLG1500MEFCT810X23 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1500UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 5,359
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.416 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.36 A @ 100 kHz |
| Impedance | 13 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.984" (25.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY100ELL152ML15S | United Chemi-Con | CAP ALUM 1500UF 20% 10V RADIAL | 100% | View |
| EEU-TP1V152 | Panasonic Electronic Components | CAP ALUM 1500UF 20% 35V RADIAL | 68% | View |
| 381LX152M063K202 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 63V SNAP | 66% | View |
| 50ZLJ1500M18X20 | Rubycon | CAP ALUM 1500UF 20% 50V RADIAL | 59% | View |
| 158KXM035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1500UF 20% 35V RADIAL | 53% | View |
| 860040781021 | Würth Elektronik | CAP ALUM 1500UF 20% 63V RADIAL | 50% | View |
Submit your RFQ for 10ZLG1500MEFCT810X23 and get a quote within 24 hours.
