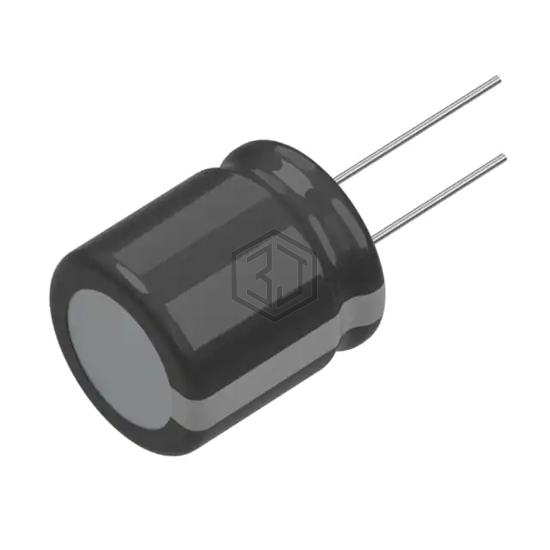

CAP ALUM 1000UF 20% 10V RADIAL
10YXS1000MEFC10X12.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,944
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 726 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.21 A @ 100 kHz |
| Impedance | 60 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860080274015 | Würth Elektronik | CAP ALUM 1000UF 20% 10V RADIAL | 97% | View |
| EEU-TA1A102 | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V RADIAL | 95% | View |
| EEU-FC1A102LB | Panasonic Electronic Components | CAP ALUM 1000UF 20% 10V RADIAL | 94% | View |
| LXY10VB102M10X20LL | United Chemi-Con | CAP ALUM 1000UF 20% 10V RADIAL | 93% | View |
| MAL214651102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 59% | View |
| 25YXH1000MEFC10X28 | Rubycon | CAP ALUM 1000UF 20% 25V RADIAL | 55% | View |
Submit your RFQ for 10YXS1000MEFC10X12.5 and get a quote within 24 hours.
