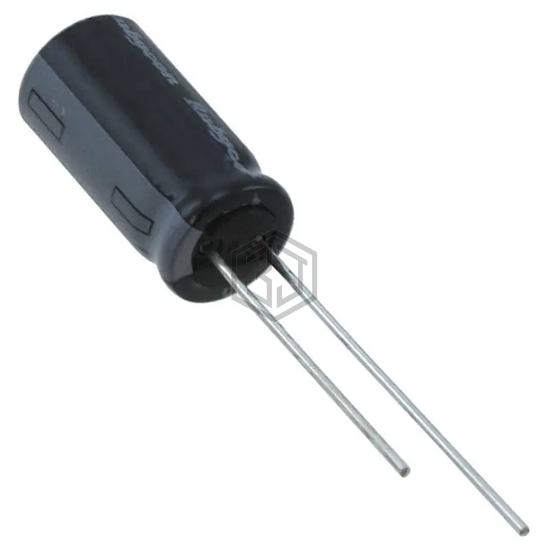

CAP ALUM 680UF 20% 10V RADIAL
10YXG680MEFCT78X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 680UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 1,347
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 462 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 87 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16WXA680MEFCT810X9 | Rubycon | CAP ALUM 680UF 20% 16V RADIAL | 73% | View |
| EEU-FM1A681B | Panasonic Electronic Components | CAP ALUM 680UF 20% 10V RADIAL | 67% | View |
| 6.3WXA680MEFCTA8X9 | Rubycon | CAP ALUM 680UF 20% 6.3V RADIAL | 67% | View |
| B41888E8687M000 | EPCOS - TDK Electronics | CAP ALUM 680UF 20% 63V RADIAL | 67% | View |
| EEU-FC1C681L | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V RADIAL | 67% | View |
| 25WXA680MEFCG412.5X16 | Rubycon | CAP ALUM 680UF 20% 25V RADIAL | 61% | View |
Submit your RFQ for 10YXG680MEFCT78X16 and get a quote within 24 hours.
