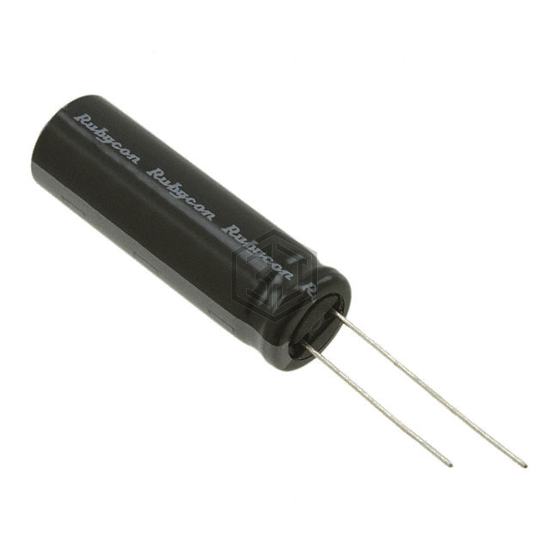

CAP ALUM 4700UF 20% 10V RADIAL
10YXG4700MEFCG412.5X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 4700UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 9,840
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.016 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.88 A @ 100 kHz |
| Impedance | 20 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA0J472MHD | Nichicon | CAP ALUM 4700UF 20% 6.3V RADIAL | 81% | View |
| LGU1H472MELZ | Nichicon | CAP ALUM 4700UF 20% 50V SNAP | 73% | View |
| 478CKE035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 35V RADIAL | 72% | View |
| B41851K7478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 35V RADIAL | 67% | View |
| 6.3YXF4700MEFCGC16X25 | Rubycon | CAP ALUM 4700UF 20% 6.3V RADIAL | 66% | View |
| EKZN250ELL472MLN3S | United Chemi-Con | CAP ALUM 4700UF 20% 25V RADIAL | 60% | View |
Submit your RFQ for 10YXG4700MEFCG412.5X35 and get a quote within 24 hours.
