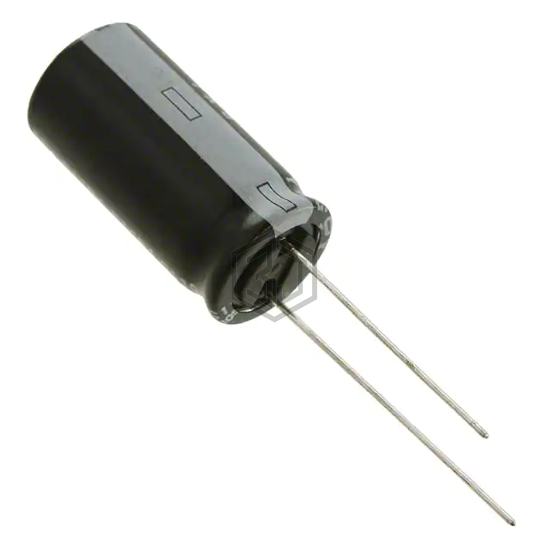

CAP ALUM 3300UF 20% 10V RADIAL
10YXG3300M12.5X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 3300UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 7,287
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.561 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.23 A @ 100 kHz |
| Impedance | 27 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
10YXG3300M12.5X25 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1C332MHD6 | Nichicon | CAP ALUM 3300UF 20% 16V RADIAL | 81% | View |
| EEU-FC0J332SB | Panasonic Electronic Components | CAP ALUM 3300UF 20% 6.3V RADIAL | 80% | View |
| ECA-1HHG332 | Panasonic Electronic Components | CAP ALUM 3300UF 20% 50V RADIAL | 74% | View |
| 16PX3300MEFCG412.5X20 | Rubycon | CAP ALUM 3300UF 20% 16V RADIAL | 72% | View |
| EKMH500VNN332MQ30W | United Chemi-Con | CAP ALUM 3300UF 20% 50V SNAP | 72% | View |
| MAL214250332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 35V RADIAL | 61% | View |
Submit your RFQ for 10YXG3300M12.5X25 and get a quote within 24 hours.
