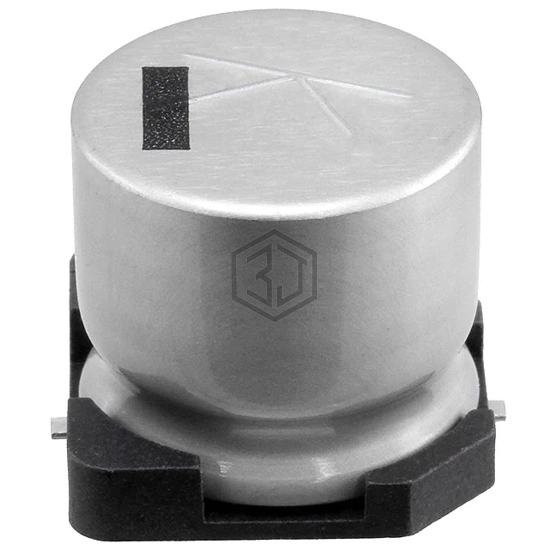

CAP ALUM 4700UF 20% 10V SMD
10TLV4700M18X16.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 4700UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 6,918
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.236 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.06 A @ 100 kHz |
| Impedance | 44 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVY10VE472MM22TR | United Chemi-Con | CAP ALUM 4700UF 20% 10V SMD | 93% | View |
| EMVY100ARA472MLN0S | Chemi-Con | CAP ALUM 10V POLAR | 91% | View |
| EMVY100ARA472MMN0S | Chemi-Con | CAP ALUM 10V POLAR | 91% | View |
| UUJ1A472MNQ1ZD | Nichicon | CAP ALUM 4700UF 20% 10V SMD | 90% | View |
| MAL215099518E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V SMD | 80% | View |
| UUJ0J472MNQ6MS | Nichicon | CAP ALUM 4700UF 20% 6.3V SMD | 71% | View |
