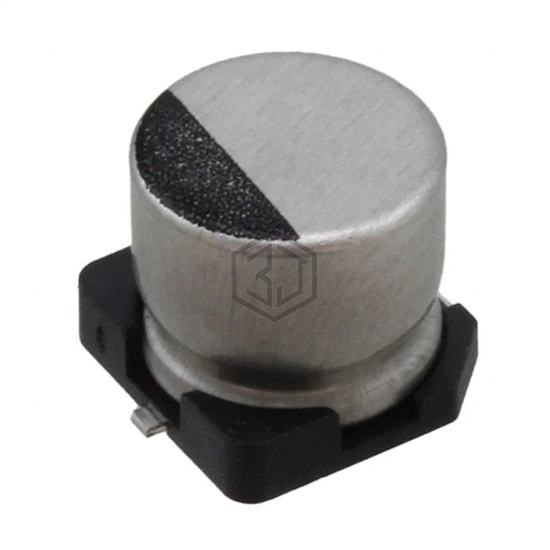

CAP ALUM 33UF 20% 10V SMD
10SJV33M5X6.1 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 33UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 2,434
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMZA100ADA330MD61G | United Chemi-Con | CAP ALUM 33UF 20% 10V SMD | 99% | View |
| UCQ1A330MCL1GB | Nichicon | CAP ALUM 33UF 20% 10V SMD | 95% | View |
| EEE-FN1A330R | Panasonic Electronic Components | CAP ALUM 33UF 20% 10V SMD | 83% | View |
| 16NSKV33M6.3X5.5 | Rubycon | CAP ALUM 33UF 20% 16V SMD | 70% | View |
| EEE-HAE330WAR | Panasonic Electronic Components | CAP ALUM 33UF 20% 25V SMD | 63% | View |
| UWT1H330MCL1GS | Nichicon | CAP ALUM 33UF 20% 50V SMD | 54% | View |
