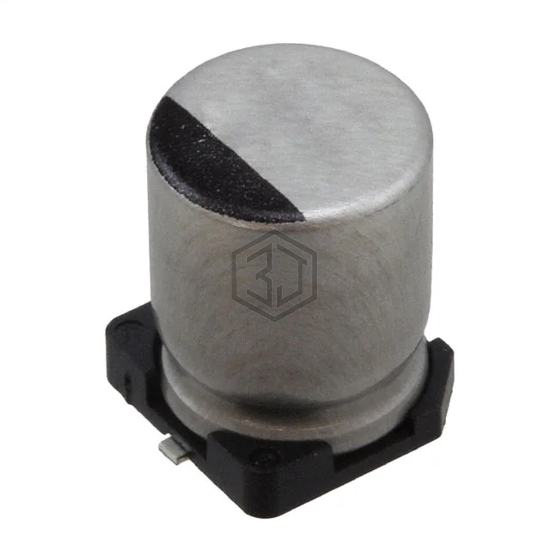

CAP ALUM 470UF 20% 10V SMD
10SGV470M8X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 470UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 9,075
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 210 mA @ 120 Hz |
| Ripple Current @ High Frequency | 252 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCQ1A471MCL1GS | Nichicon | CAP ALUM 470UF 20% 10V SMD | 86% | View |
| UWT0J471MNL1GS | Nichicon | CAP ALUM 470UF 20% 6.3V SMD | 81% | View |
| AVEK477M10G24T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 10V SMD | 78% | View |
| CED1C471MCB08A5F2 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 68% | View |
| EEE-FK1A471AL | Panasonic Electronic Components | CAP ALUM 470UF 20% 10V SMD | 64% | View |
| EEE-FK1A471GV | Panasonic Electronic Components | CAP ALUM 470UF 20% 10V SMD | 61% | View |
Submit your RFQ for 10SGV470M8X10.5 and get a quote within 24 hours.
