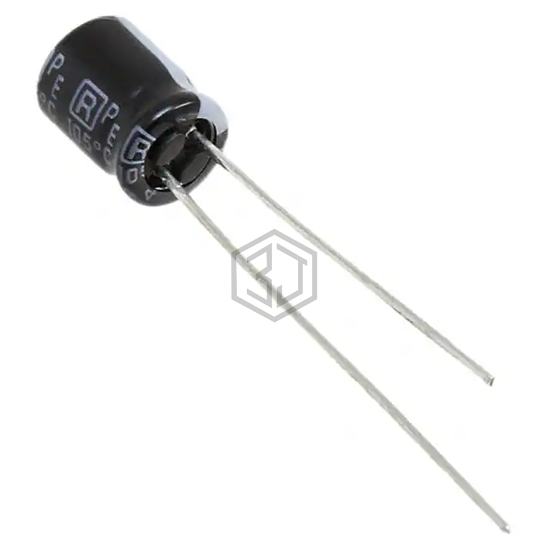

CAP ALUM 22UF 20% 10V RADIAL
10MH722MEFCT55X7 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 22UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 7,667
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 38 mA @ 120 Hz |
| Ripple Current @ High Frequency | 57 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.335" (8.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ1A220MDD1TD | Nichicon | CAP ALUM 22UF 20% 10V RADIAL | 98% | View |
| 860160372003 | Würth Elektronik | CAP ALUM 22UF 20% 16V RADIAL | 80% | View |
| UST0J220MDD1TE | Nichicon | CAP ALUM 22UF 20% 6.3V RADIAL | 77% | View |
| UMT1C220MDD1TP | Nichicon | CAP ALUM 22UF 20% 16V RADIAL | 74% | View |
| UMV1V220MFD1TP | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 68% | View |
| 517D226M025JA6AE3 | Vishay Sprague | CAP ALUM 22UF 20% 25V RADIAL | 50% | View |
Submit your RFQ for 10MH722MEFCT55X7 and get a quote within 24 hours.
