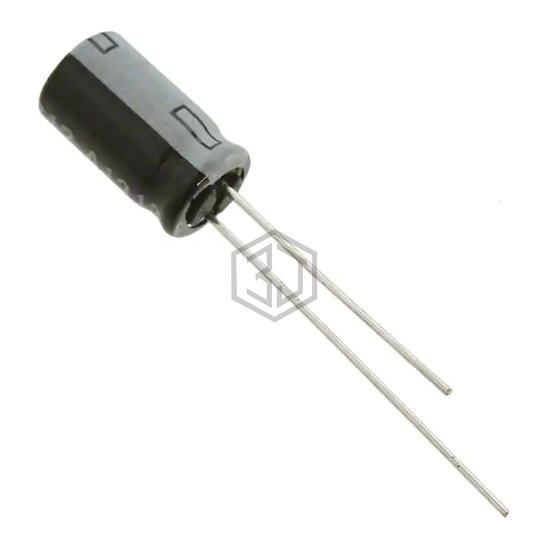

CAP ALUM 18UF 20% 100V RADIAL
100ZLH18MEFCTA6.3X11 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 18UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 6,156
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 18 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 112.14 mA @ 120 Hz |
| Ripple Current @ High Frequency | 267 mA @ 100 kHz |
| Impedance | 570 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZN101ELL180MF11D | United Chemi-Con | CAP ALUM 18UF 20% 100V RADIAL | 81% | View |
| EKXF201ELL180MJC5S | United Chemi-Con | CAP ALUM 18UF 20% 200V RADIAL TH | 77% | View |
| EKXE201ELL180MJC5S | United Chemi-Con | CAP ALUM 18UF 20% 200V RADIAL TH | 67% | View |
| 860080773003 | Würth Elektronik | CAP ALUM 18UF 20% 63V RADIAL | 66% | View |
| UVC2G180MPD1TD | Nichicon | CAP ALUM 18UF 20% 400V RADIAL | 62% | View |
| EEU-FC1H180B | Panasonic Electronic Components | CAP ALUM 18UF 20% 50V RADIAL | 58% | View |
