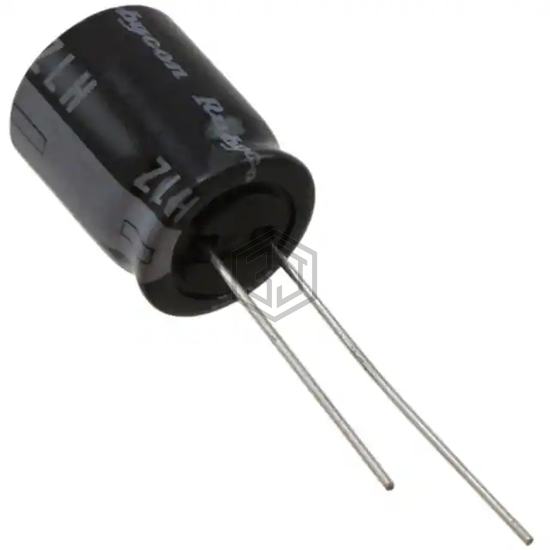

CAP ALUM 100UF 20% 100V RADIAL
100ZLH100MEFCG412.5X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,927
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 487.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 975 mA @ 100 kHz |
| Impedance | 130 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW2A101MPD | Nichicon | CAP ALUM 100UF 20% 100V RADIAL | 99% | View |
| EKZN500ELL101MHB5D | United Chemi-Con | CAP ALUM 100UF 20% 50V RADIAL | 72% | View |
| EKXJ221ELL101MK25S | United Chemi-Con | CAP ALUM 100UF 20% 220V RADIAL | 64% | View |
| B43858A2107M9 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 200V RADIAL | 63% | View |
| 50YXJ100MCE8X11.5 | Rubycon | CAP ALUM 100UF 20% 50V RADIAL | 62% | View |
| SEK101M350ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 350V RADIAL | 62% | View |
Submit your RFQ for 100ZLH100MEFCG412.5X16 and get a quote within 24 hours.
