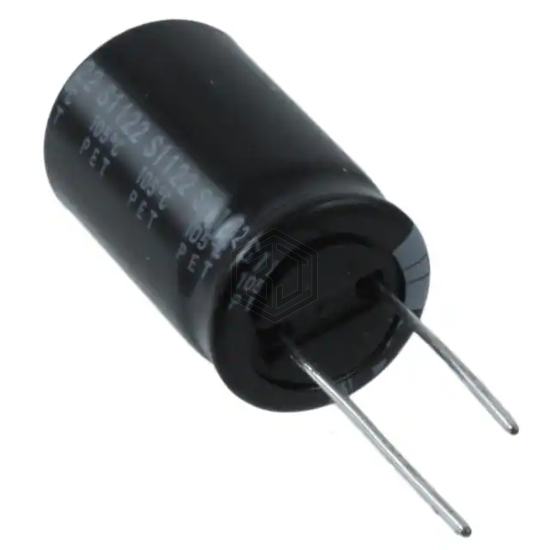

CAP ALUM 330UF 20% 100V RADIAL
100YXJ330MGC16X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 330UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 1,979
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.547 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.21 A @ 100 kHz |
| Impedance | 44 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LX331M100H012 | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 100V SNAP | 100% | View |
| EEU-FR1H331LB | Panasonic Electronic Components | CAP ALUM 330UF 20% 50V RADIAL | 72% | View |
| MAL211919331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 100V AXIAL | 68% | View |
| 381LX331M250H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 250V SNAP | 67% | View |
| EPAG201ELL331MM30S | United Chemi-Con | CAP ALUM 330UF 20% 200V RADIAL | 64% | View |
| 860040778012 | Würth Elektronik | CAP ALUM 330UF 20% 63V RADIAL | 63% | View |
Submit your RFQ for 100YXJ330MGC16X25 and get a quote within 24 hours.
