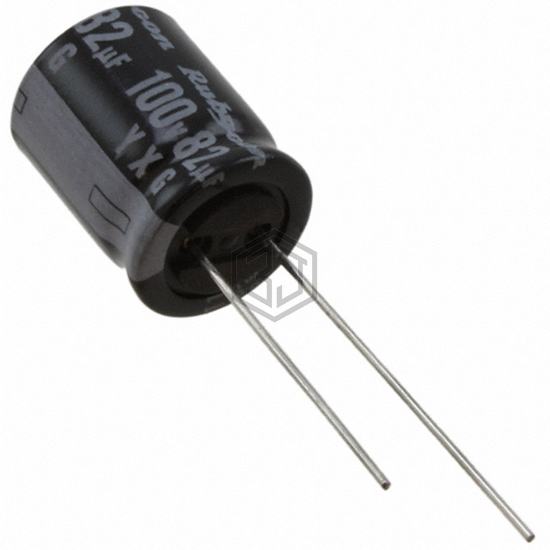

CAP ALUM 82UF 20% 100V RADIAL
100YXG82MEFC12.5X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 82UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 4,088
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 233 mA @ 120 Hz |
| Ripple Current @ High Frequency | 466 mA @ 100 kHz |
| Impedance | 230 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860160674020 | Würth Elektronik | CAP ALUM 82UF 20% 50V RADIAL | 75% | View |
| UAQ2D820MHD | Nichicon | CAP ALUM 82UF 20% 200V RADIAL | 74% | View |
| EEU-FC1H820BJ | Panasonic Electronic Components | CAP ALUM 82UF 20% 50V RADIAL | 68% | View |
| 860160574011 | Würth Elektronik | CAP ALUM 82UF 20% 35V RADIAL | 66% | View |
| 860080674008 | Würth Elektronik | CAP ALUM 82UF 20% 50V RADIAL | 62% | View |
| 63YXG82MEFC10X12.5 | Rubycon | CAP ALUM 82UF 20% 63V RADIAL | 60% | View |
Submit your RFQ for 100YXG82MEFC12.5X16 and get a quote within 24 hours.
