CAP ALUM 680UF 20% 100V RADIAL

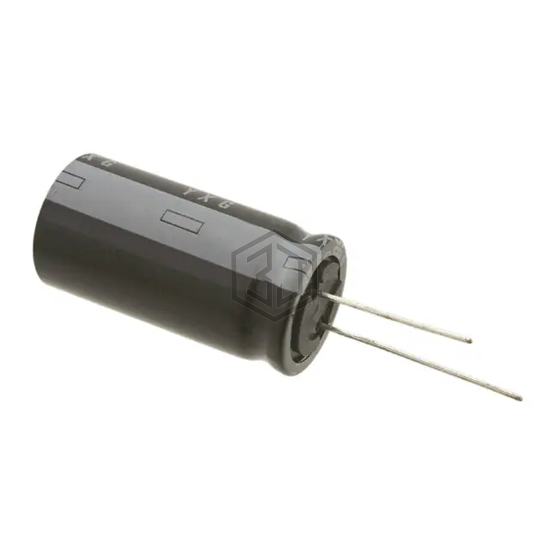

100YXG680M18X35.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 680UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 7,821
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 984.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.79 A @ 100 kHz |
| Impedance | 40 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
100YXG680M18X35.5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 80YXG680MEFC18X25 | Rubycon | CAP ALUM 680UF 20% 80V RADIAL TH | 86% | View |
| MAL214638681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 80% | View |
| EKY-350ELL681MJ30S | United Chemi-Con | CAP ALUM 680UF 20% 35V RADIAL | 74% | View |
| 25YXH680MEFCT810X20 | Rubycon | CAP ALUM 680UF 20% 25V RADIAL | 70% | View |
| 511D687M063EN4D | Vishay Sprague | CAP ALUM 680UF 20% 63V RADIAL | 70% | View |
| EKZE630ELL681MK40S | United Chemi-Con | CAP ALUM 680UF 20% 63V RADIAL | 60% | View |
Submit your RFQ for 100YXG680M18X35.5 and get a quote within 24 hours.
