CAP ALUM 6.8UF 20% 100V RADIAL

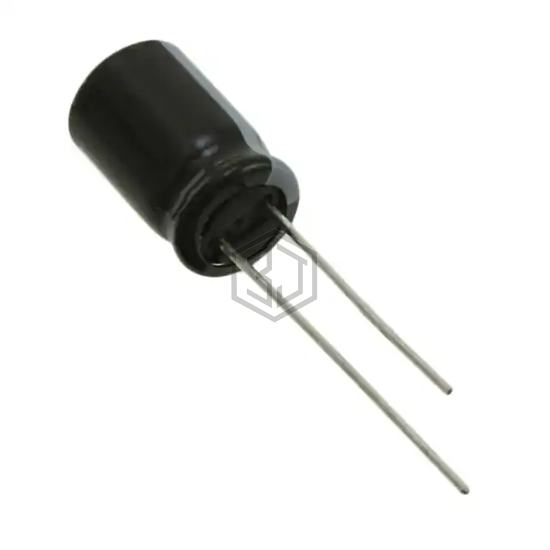

100YXG6.8MEFCT15X11 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 6.8UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 7,864
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6.8 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 23.1 mA @ 120 Hz |
| Ripple Current @ High Frequency | 55 mA @ 100 kHz |
| Impedance | 2.3 Ohms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ2A6R8MED1TA | Nichicon | CAP ALUM 6.8UF 20% 100V RADIAL | 82% | View |
| UPJ2A6R8MED1TD | Nichicon | CAP ALUM 6.8UF 20% 100V RADIAL | 82% | View |
| UPJ1K6R8MDD1TD | Nichicon | CAP ALUM 6.8UF 20% 80V RADIAL | 80% | View |
| UPW2A6R8MDD1TD | Nichicon | CAP ALUM 6.8UF 20% 100V RADIAL | 79% | View |
| 50ML6.8MEFCT55X5 | Rubycon | CAP ALUM 6.8UF 20% 50V RADIAL | 68% | View |
| EEA-FC1V6R8B | Panasonic Electronic Components | CAP ALUM 6.8UF 20% 35V RADIAL | 64% | View |
Submit your RFQ for 100YXG6.8MEFCT15X11 and get a quote within 24 hours.
