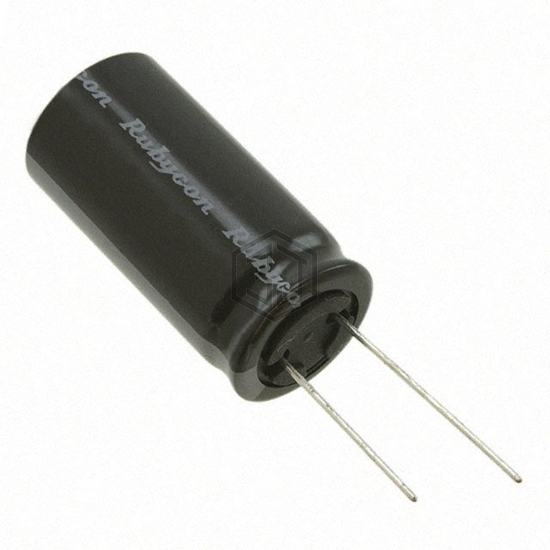

CAP ALUM 470UF 20% 100V RADIAL
100YXG470MEFC16X35.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 470UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 1,911
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 984.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.79 A @ 100 kHz |
| Impedance | 45 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PEG124PL347VQE4 | KEMET | CAP ALUM 470UF 20% 100V AXIAL | 97% | View |
| B41895A6477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 50V RADIAL | 76% | View |
| 860040575010 | Würth Elektronik | CAP ALUM 470UF 20% 35V RADIAL | 74% | View |
| LGU2Z471MELY | Nichicon | CAP ALUM 470UF 20% 180V SNAP | 70% | View |
| RZW471M1VBK-1316S | SURGE | CAP ALUM 470UF 20% 35V RADIAL | 69% | View |
| MAL213828471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 63V AXIAL | 63% | View |
Submit your RFQ for 100YXG470MEFC16X35.5 and get a quote within 24 hours.
