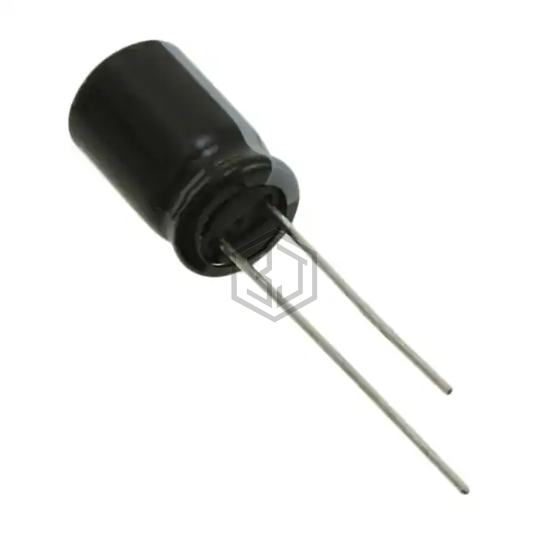

CAP ALUM 27UF 20% 100V RADIAL
100YXG27MEFC8X11.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 27UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 7,492
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 27 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 97.44 mA @ 120 Hz |
| Ripple Current @ High Frequency | 232 mA @ 100 kHz |
| Impedance | 630 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860080773005 | Würth Elektronik | CAP ALUM 27UF 20% 63V RADIAL | 79% | View |
| 860080673002 | Würth Elektronik | CAP ALUM 27UF 20% 50V RADIAL | 63% | View |
| EKYB101ELL270MHB5D | United Chemi-Con | CAP ALUM 27UF 20% 100V RADIAL | 59% | View |
| EEA-FC1C270H | Panasonic Electronic Components | CAP ALUM 27UF 20% 16V RADIAL | 58% | View |
| EKXF201ELL270MJ16S | United Chemi-Con | CAP ALUM 27UF 20% 200V RADIAL TH | 57% | View |
| UAS2G270MHD | Nichicon | CAP ALUM 27UF 20% 400V RADIAL | 54% | View |
Submit your RFQ for 100YXG27MEFC8X11.5 and get a quote within 24 hours.
