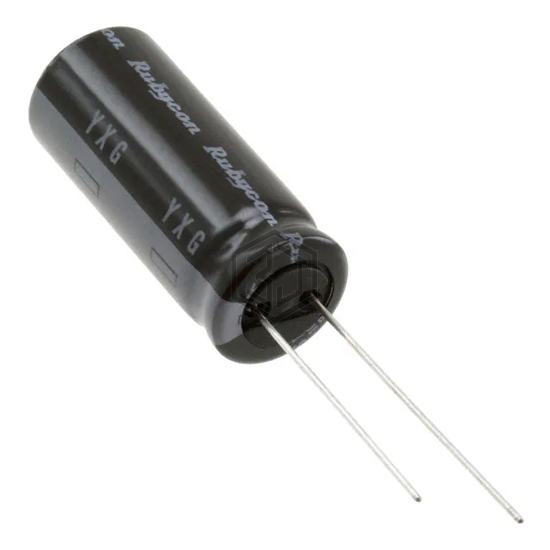

CAP ALUM 220UF 20% 100V RADIAL
100YXG220MEFCG412.5X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 9,318
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 452.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 100 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX1J221MHL | Nichicon | CAP ALUM 220UF 20% 63V RADIAL | 76% | View |
| UBT1K221MHD8 | Nichicon | CAP ALUM 220UF 20% 80V RADIAL | 75% | View |
| 10ZLG220MEFC6.3X11 | Rubycon | CAP ALUM 220UF 20% 10V RADIAL | 64% | View |
| RXK221M1HBK-1020S | SURGE | CAP ALUM 220UF 20% 50V RADIAL | 62% | View |
| 10YXG220MEFCT56.3X7 | Rubycon | CAP ALUM 220UF 20% 10V RADIAL | 56% | View |
| MAL204851221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 50V RADIAL | 54% | View |
