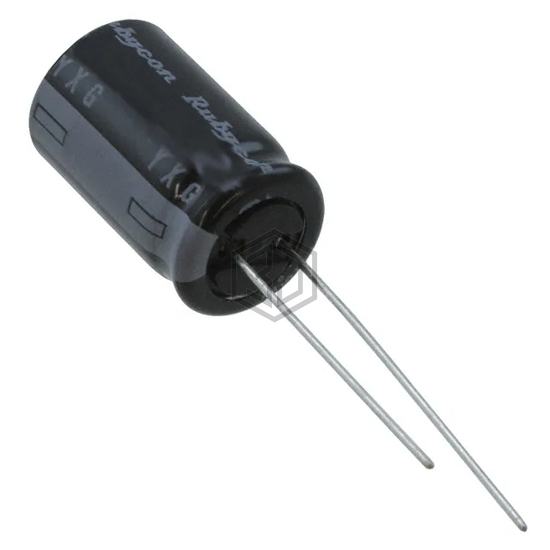

CAP ALUM 120UF 20% 100V RADIAL
100YXG120MEFC12.5X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 120UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 1,505
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 345 mA @ 120 Hz |
| Ripple Current @ High Frequency | 690 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC2A121S | Panasonic Electronic Components | CAP ALUM 120UF 20% 100V RADIAL | 87% | View |
| EKZE630EC3121MH20D | United Chemi-Con | CAP ALUM 120UF 20% 63V RADIAL | 80% | View |
| 860160674022 | Würth Elektronik | CAP ALUM 120UF 20% 50V RADIAL | 73% | View |
| MAL213650121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 35V RADIAL | 69% | View |
| 16ZLG120MEFCTA6.3X11 | Rubycon | CAP ALUM 120UF 20% 16V RADIAL | 67% | View |
| 63YXH120MEFC8X20 | Rubycon | CAP ALUM 120UF 20% 63V RADIAL TH | 61% | View |
Submit your RFQ for 100YXG120MEFC12.5X20 and get a quote within 24 hours.
