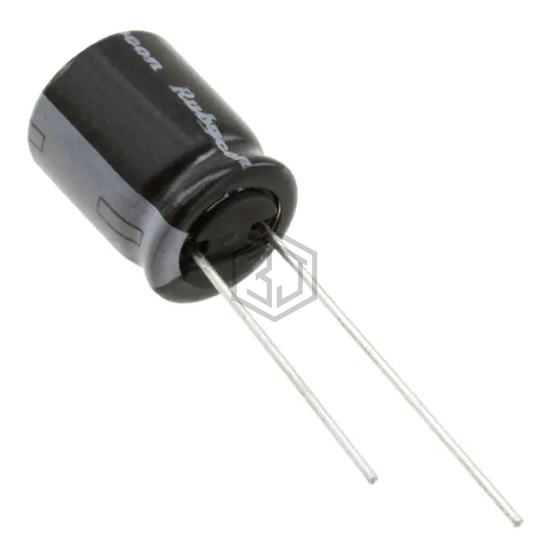

CAP ALUM 33UF 20% 100V RADIAL
100YXF33MEFCT810X12.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 33UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 7,143
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 126.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 230 mA @ 100 kHz |
| Impedance | 430 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG101ELL330MJC5S | United Chemi-Con | CAP ALUM 33UF 20% 100V RADIAL | 100% | View |
| SEK330M100RT | Cornell Dubilier Knowles | ALUM ELECT/M | 94% | View |
| RXW330M2ABK-0815S | Surge | CAP ALUM 100V POLAR | 86% | View |
| UVZ2C330MPH | Nichicon | CAP ALUM 33UF 20% 160V RADIAL | 82% | View |
| RF2A330MS31016ER | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 67% | View |
| 860160472005 | Würth Elektronik | CAP ALUM 33UF 20% 25V RADIAL | 55% | View |
