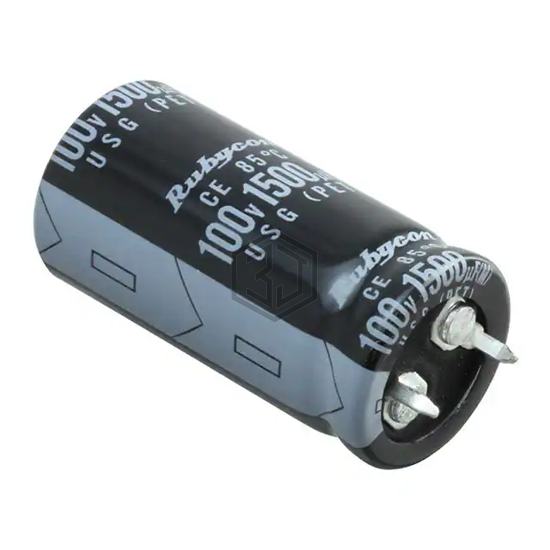

CAP ALUM 1500UF 20% 100V SNAP
100USG1500MEFCSN20X40 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1500UF 20% 100V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Snap-In.
In Stock: 8,536
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.45 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.818 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1J152MESZBK | Nichicon | CAP ALUM 1500UF 20% 63V SNAP | 77% | View |
| LGG2E152MELB50 | Nichicon | CAP ALUM 1500UF 20% 250V SNAP | 73% | View |
| MAL205678152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 63V SNAP | 72% | View |
| EEU-FM1A152L | Panasonic Electronic Components | CAP ALUM 1500UF 20% 10V RADIAL | 71% | View |
| B43640E2158M007 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 250V SNAP | 64% | View |
| 25ZLH1500MEFCG412.5X20 | Rubycon | CAP ALUM 1500UF 20% 25V RADIAL | 64% | View |
Submit your RFQ for 100USG1500MEFCSN20X40 and get a quote within 24 hours.
